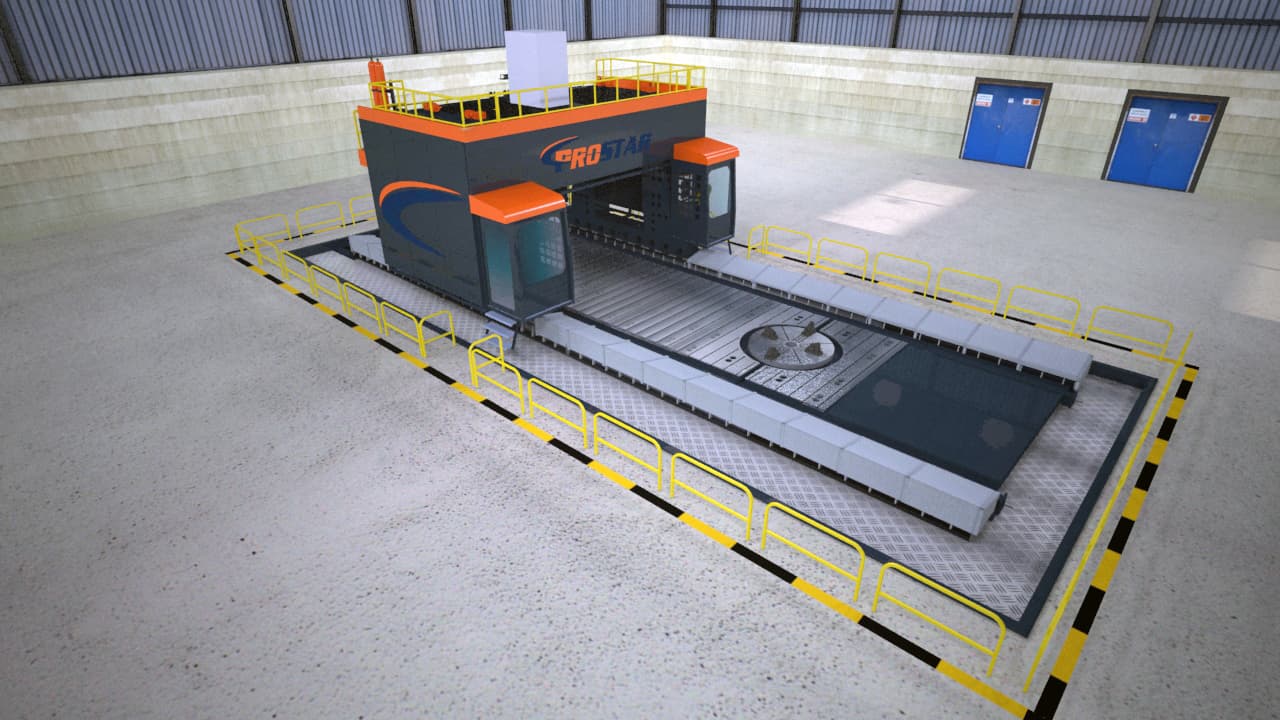

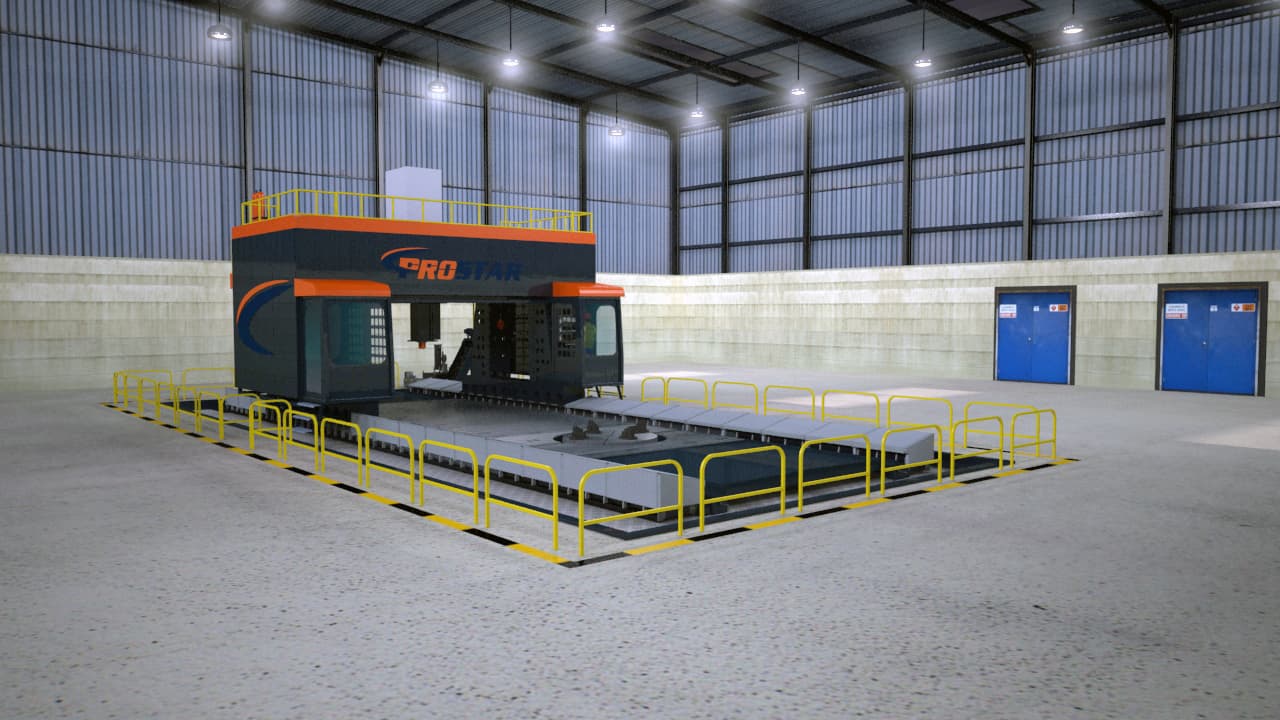

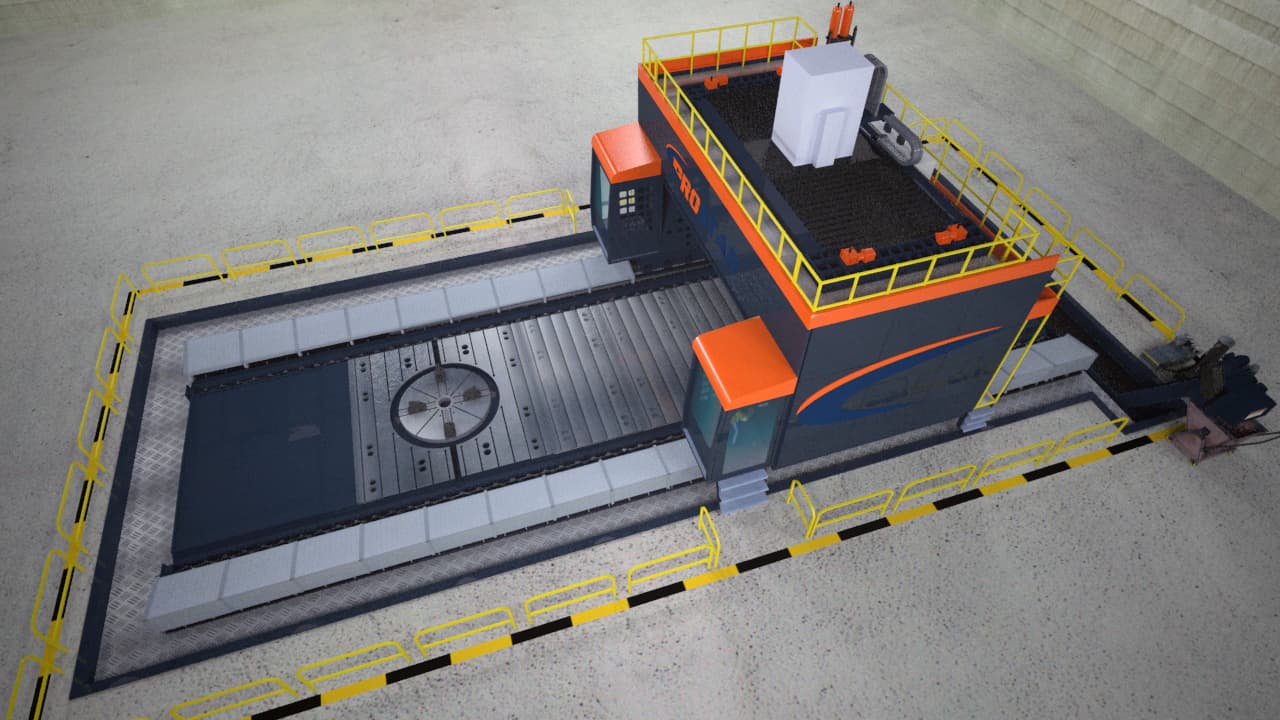

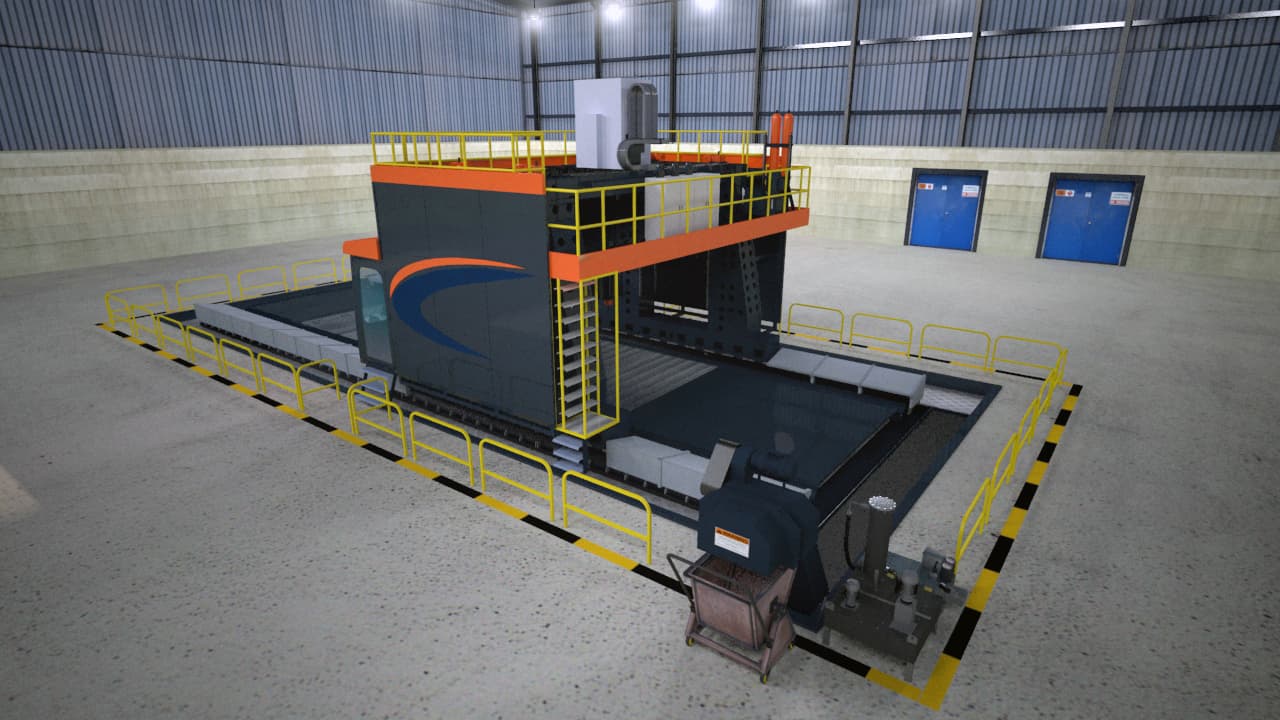

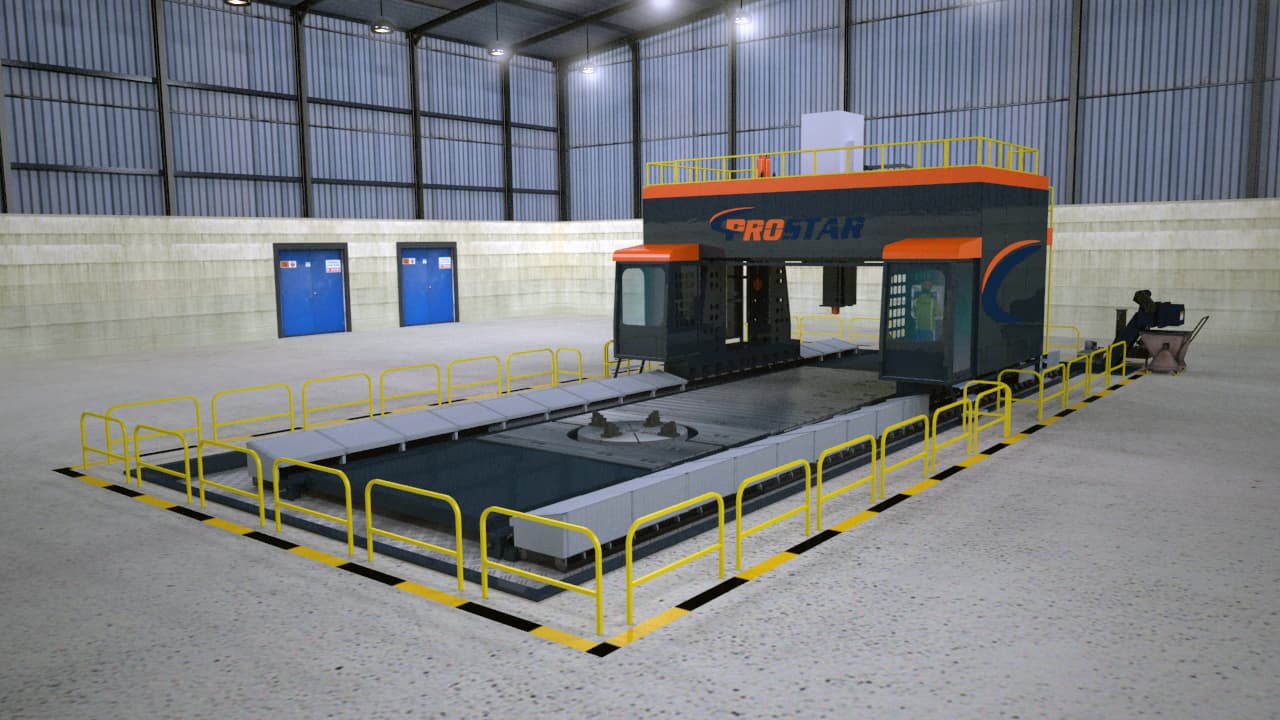

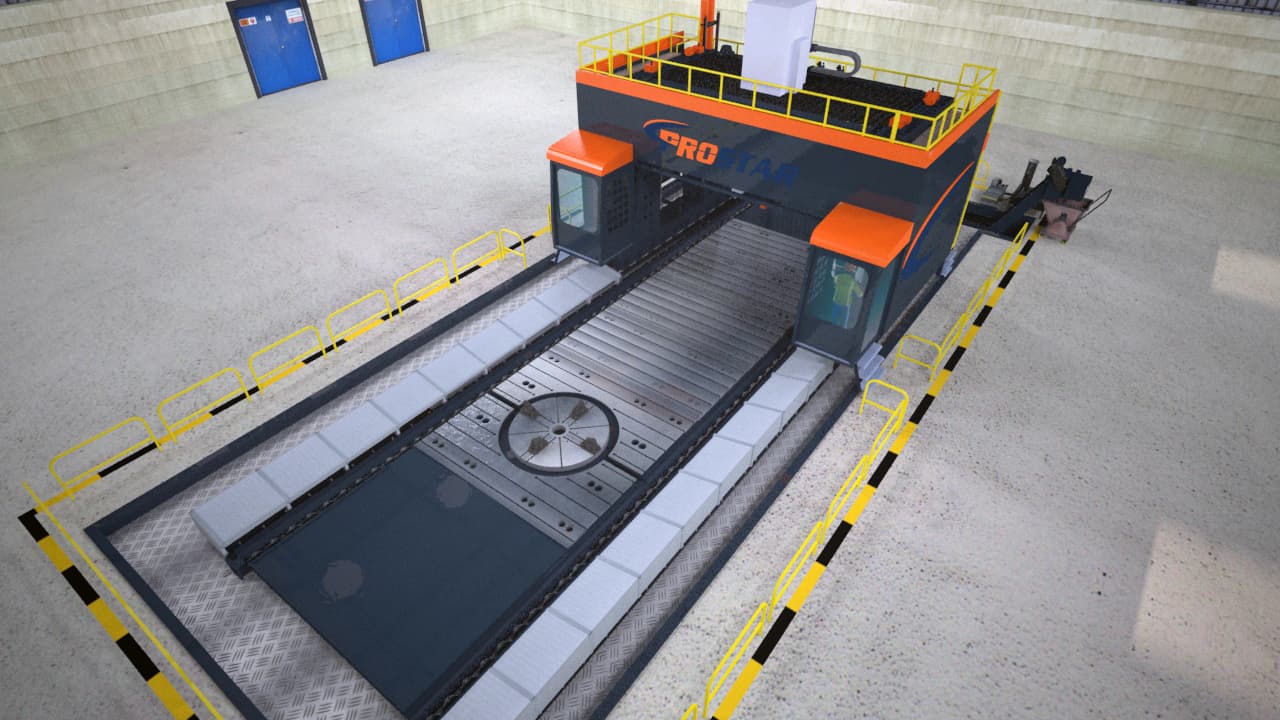

    SHMW Series

    SHG Series double column machining centres are the core products of PROSTAR. With full range of specification and customizable solutions, these machining centres become best-selling products and meet all requirements from Accuracy, rapid feed rate, high efficiency to heavy duty.

    SHGSHGSHGSHGSHGSHGSHG
    TRAVEL
    Distance Between Columns3800 mm
    X-Axis3000 + Nx 1000...30000 mm
    Y-Axis3000 mm
    Z-Axis1000 (opt. 1200) mm
    W-Axis1000 (opt. 1200) mm
    Distance From Spindle Nose To Table Surface200 ~ 2000 (opt. up to 2700) mm
    TABLE
    Length mm
    Width3000 mm
    T Slots (Width x Pitch)28 x 250 mm
    SPINDLE
    TaperBT50
    Speed4000 (opt. 6000 + 2 Stage Gearbox) rpm
    Motor Output18.5/22 (opt. 22/26) kW
    FEEDRATE
    Rapid X-Axis12 m/min
    Rapid Y-Axis15 m/min
    Rapid Z-Axis10 m/min
    Rapid W-Axis6 m/min
    Cutting5 ~ 6000 mm/min
    ATC & TOOL MAGAZINE
    Magazine24 nos.
    Max Dia125 mm
    Max Length400 mm
    Max Weight20 kg
    OTHERS
    GuidewaysLinear Guideways
    Cnc ControllerMitsubishi (opt. Siemens / Fanuc / Fagor)
    MACHINESIZE
    Length7.6m + Nx 1m...36.5m mm
    Width6.5 mm
    Height5.5 ~ 7.7 mm
